High Speed Network Visibility Rack Mount Tap System 32CH 64CH MPO/MTP®

Fiber Type : Single-mode, Multi-mode

Wavelength Range : 1260–1650 nm (Single-mode), 850±50 nm (Multi-mode)

Port Configuration : 32CH, 64CH

Insertion Loss : 5%: 14.8–15.7 dB, 20%: 8.70–8.95 dB, 30%: 6.8–7.2 dB, 40%: 5.5–5.8 dB, 50%: 4.6–4.8 dB

Return Loss : ≥50 dB (Single-mode), ≥25 dB (Multi-mode)

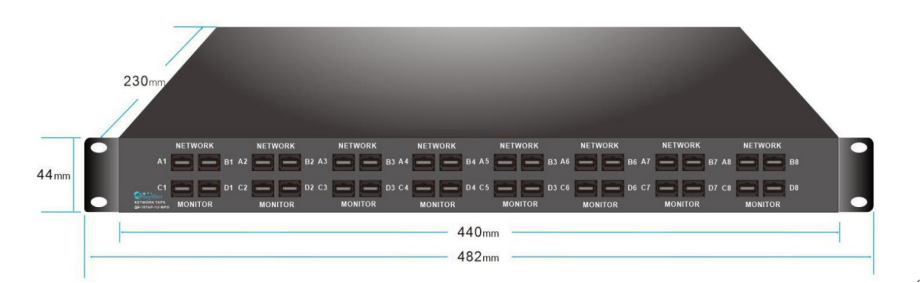

Dimensions : 482 * 230 * 44 mm

Place of Origin : China

Brand Name : Gracyfiber

Certification : ISO CE RoSH

MOQ : 100pcs

Payment Terms : T/T

Contact Now

Rack Mount Tap Systems (32-CH / 64-CH MPO/MTP®) — For Data Centers, Optical Monitoring, And High-Speed ​​Networks

1. Product Description

This Rack Mount Tap System is a rack-mountable passive optical monitoring splitter system designed for high-density fiber link monitoring and network visualization applications. It supports both Single-mode and Multi-mode configurations and offers 32-channel (32CH) and 64-channel (64CH) port options. The single-mode version operates within a wavelength range of 1260–1650 nm, while the multi-mode version is suitable for the 850±50 nm range. It is ideally suited for application scenarios such as data center backbone link monitoring, parallel optical interconnects, traffic monitoring, and high-speed network analysis. The product features high-density MPO/MTP® interfaces and comes in a standard rack-mount form factor of 482 * 230 * 44 mm, facilitating easy installation into standard equipment cabinets, monitoring platforms, and high-density cabling environments.

2. Key Features
Parameter Unit Value
Fiber Type nm Single-mode Multi-mode
Wavelength nm 1260~1650 850±50
Port Configuration – 32CH 64CH 32CH 64CH
Insertion Loss
(Max)		 Tap Ratio 5% dB 14.8 15.1 15.3 15.7
95% dB 1.3 1.4 1.5 1.7
Tap Ratio 20% dB 8.70 8.85 8.80 8.95
80% dB 2.45 2.55 2.50 2.60
Tap Ratio 30% dB 6.9 7.2 6.8 7.1
70% dB 2.8 3.1 2.9 3.2
Tap Ratio 40% dB 5.6 5.8 5.5 5.8
60% dB 3.6 3.8 3.5 3.8
Tap Ratio 50% dB 4.7 4.8 4.6 4.8
50% dB 4.7 4.8 4.6 4.8
Return Loss dB ≥50 ≥25
Directivity dB ≥50 ≥25
Power Handing mW 300 500
Fiber Type – G67A1/ A2/ B3 or SMF-28 OM3/OM4/OM5
Fiber Coating um 250 µm / 900 µm loose tube
Conector – MPO/MTP®
Package Size mm 482*230*44
Operation Temperature °C -5~65
Storage Temperature °C -40~85
  • Supports both Single-mode and Multi-mode configurations
  • Offers high-density 32-channel and 64-channel port configurations
  • Compatible with 1260–1650 nm single-mode and 850±50 nm multi-mode wavelength bands
  • Supports various Tap Ratios: 5/95, 20/80, 30/70, 40/60, and 50/50
  • Single-mode Return Loss and Directivity: ≥50 dB
  • Multi-mode Return Loss and Directivity: ≥25 dB
  • Features high-density MPO/MTP® interfaces
  • Standard rack-mount dimensions: 482 * 230 * 44 mm
3. Applications
  • Data Center Backbone Link Monitoring
  • High-Density Network Visualization Systems
  • Traffic Analysis and Security Auditing
  • Parallel Optical Interconnect Monitoring
  • Optical Communication Test Platforms
  • Rack-Mount Monitoring System Integration
  • OEM Optical Monitoring Modules
